PRODUCT INTRODUCTION​

JW ECO-TECHNOLOGY PERMEABLE PAVEMENT​

Product Feature

The high development of the human living environment is causing damage to the natural environment. Drought, flood, landslide, water pollution, air deterioration,  global warming, and heat island effect are gradually expanding. These nature’s counterattack movements are mounting a silent protest toward the highly-developed modern construction.

The “JW pavement for Disaster Prevention, Air Conditioning and Water Flowing” is a ground paving method that allows the paved land to maintain water permeability and evaporation functions, allowing the earth to retain its original natural characteristics and strike a balance between construction and environmental protection.

JW pavement construction method is based on nature, cleverly utilize material physical properties and fluid mechanics. With the simplest structure, breakthrough building materials, it can solve many difficult problems in permeable engineering. In addition to the “material permeable pavement” and “

splicing permeable pavement”, the third category of “structural permeable pavement” is one of the most excellent paving and permeable construction methods in the world.

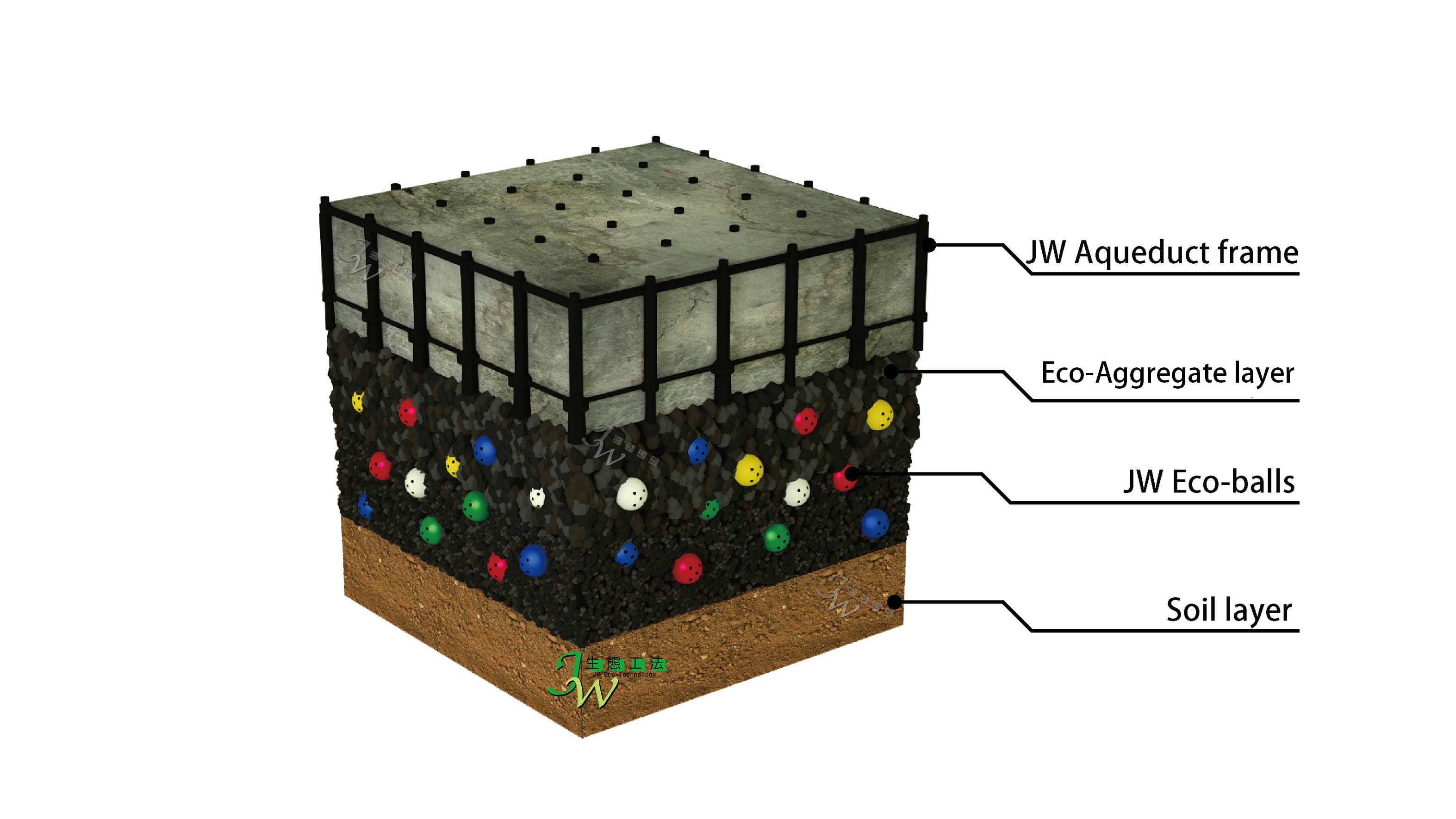

JW生態級配剖面圖
  • High Water and Air Permeability:

The “water aqueducts” are highly water-permeable and capable of absorbing dust. The “air conditioning pipes” are wide at the bottom, narrow at the top and acts as a chimney to draw the cold (hot) air under the ground out to the surface to form a complete air circulation and clean the air.







  • Mutual Support and Reinforcement of Building Materials:

The aqueduct frameworks are made of plastic and resistant to rain. The interconnected aqueduct frameworks form a tough structure as a welded steel bar. With concrete filling, the plastic aqueduct frameworks would not be aged due to direct sunlight.

The overall structure of JW pavement is as sturdy and durable as the floor.







  • Water Storage for Flood Control and Formation of Underground Reservoirs:

Stormwater can be effectively recovered for compensating limited water permeability of the natural soil. A large amount of rainwater first quickly enters
the “main storage air-conditioning layer” through the aqueduct, and then flows into the “sub-storage layer” to form an underground reservoir acting like a flood-control detention pool. This also allows the soil to absorb water to recharge groundwater to prevent subsidence and reduce the occurrence of floods and droughts.

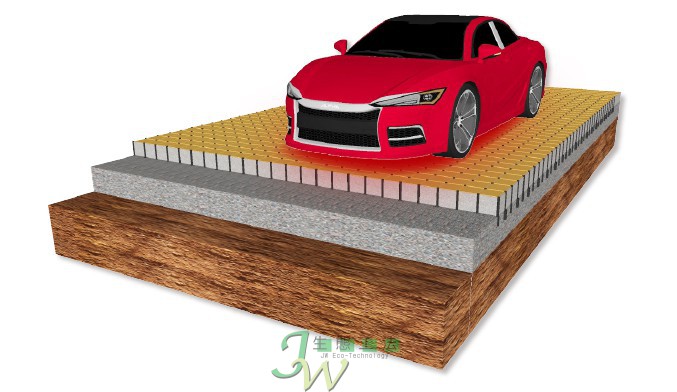

20180713151828_10773
JW生態工法綠建築認證

Applicable Location

1) Sidewalks, Road

2) Patio, Atrium

3) Hillside Boulevard

4) Parking lot

5) Park

6)Recreation site

7) Train, MRT Station

8) Aircraft runway, Parking apron

9) Schools, Public places and all places where concrete paving is required

Advantage

Ecological Advantage

1) Replenish groundwater to avoid ground subsidence.

2) Containing water resources to prevent drought.

3) Reduce surface runoff and prevent floods.

4) Conserve the soil and restore the natural infiltration function of the soil to reproduce the growth environment of animals and plants.

5) Circulating ventilation to reduce the greenhouse effect.

6) Balance the humidity, accelerate the dust fall and clean the air.

7) Use this method to actively eliminate carbon dioxide.

Environmental Advantage

1) The main structure of JW pavement can be produced using waste recycled plastics.

2)Waste recycled glass can be used for surface materials of JW pavement.

3) No bricks are needed for JW pavement, which can reduce the production of carbon dioxide during the process.

4) Reduced road temperature and reduced tire wear.

5) Sturdy and durable, reducing maintenance and repetitive consumables.

6) Reduce the high-speed driving noise of the vehicle.

7) Construction waste can serve as a grading layer, and reservoir silt can be used for the air conditioning layer.

Comparison

Construction procedure

The JW Eco-Technology depends on the characteristics of the case and adapts to local conditions. The construction procedures are subject to the needs of the owner. Please contact us if needed.
